FIM-A
3STelecom
Description

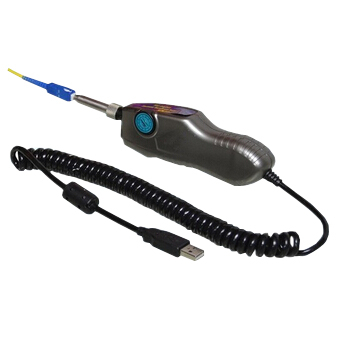

FIM-A Fiber Microscope Probe features with USB function to connect the laptop or PC directly, which includes image sensor inside the probe to have real-time inspection, no need for any additional power cord and driver. It can also be equipped with EFD3.3.0 Data Software to have end face verified based on different IEC/IPC internal criteria or customize. All spots, scratches, defects, etc. around end face can be easily figured out, measured and counted with pdf or excel report file generated. It’s most applied in fiber operator and research institution.
Features
1. Zoomable lens
2. High alignment accuracy
3. 400X magnification
4. Print report
5. Adapters for different kinds of terminal
6. Lower failure rate
Specification
Items | Value | |
Magnification | 400X | |
Resolution | 1.0μm | |
Field of View | 0.40*0.31mm | |
Working/Storage Temperature | -18℃-35℃ | |
Dimension | 235*95*30mm | |
Sensor | 1/3 decimetre, 2 million pixels | |
Weight | 0.15kg | |
USB Interface | 1.1/2.0 | |
Standard Accessories: | ||
Name | Quantity | |
FIM-A Fiber Microscope Probe | 1pc | |
Adapter SC-PC-F (for SC/PC adaptor) | 1pc | |
Adapter FC-PC-F (for FC/PC adaptor) | 1pc | |
Adapter LC-PC-F (for LC/PC adaptor) | 1pc | |
Adapter 2.5mm-Male (for 2.5mm connector, SC/PC, FC/PC, ST/PC) | 1pc | |
Optional Accessories: | ||
Name | Quantity | |
ST-PC-F (For ST/PC adaptor) | 1pc | |
MU-PC-F (For MU/PC adaptor) | 1pc | |
E2000-F-PC (For E2000/PC adaptor) | 1pc | |
MTRJ-PC-F (For MTRJ/PC adaptor) | 1pc | |
1.25PC-M (For 1.25mm connectors, LC/PC, MU/PC) | 1pc | |
SMA-M (For SMA/PC connector) | 1pc | |
FC-F-APC (For FC/APC adaptor) | 1pc | |
SC-F-APC (For SC/APC adaptor) | 1pc | |
LC-APC-F ((For LC/APC adaptor) | 1pc | |
E2000-APC-F ((For E2000/APC adaptor) | 1pc | |
2.5M-APC (For 2.5mm connectors, SC/APC, FC/APC, ST/APC) | 1pc | |
MPO-PC-F (For MPO/PC adaptor); MPO-APC-F (For MPO/APC adaptor) | 1set | |
Tip60 (60 degree base for special tips) | 1pc | |
FC-PC-60F (For FC/PC adaptor at 60 degree testing) | 1pc | |
SC-PC-60F (For SC/PC adaptor at 60 degree testing) | 1pc | |
LC-PC-60F (For LC/PC adaptor at 60 degree testing) | 1pc | |
LC-APC-60F (For LC/APC adaptor at 60 degree testing) | 1pc | |
SC-APC-60F (For SC/APC adaptor at 60 degree testing) | 1pc | |
1.25APC-M ( (For 1.25mm connectors, LC/APC, MU/APC at 60 degree testing) | 1pc |
