FOPM-C
3STelecom

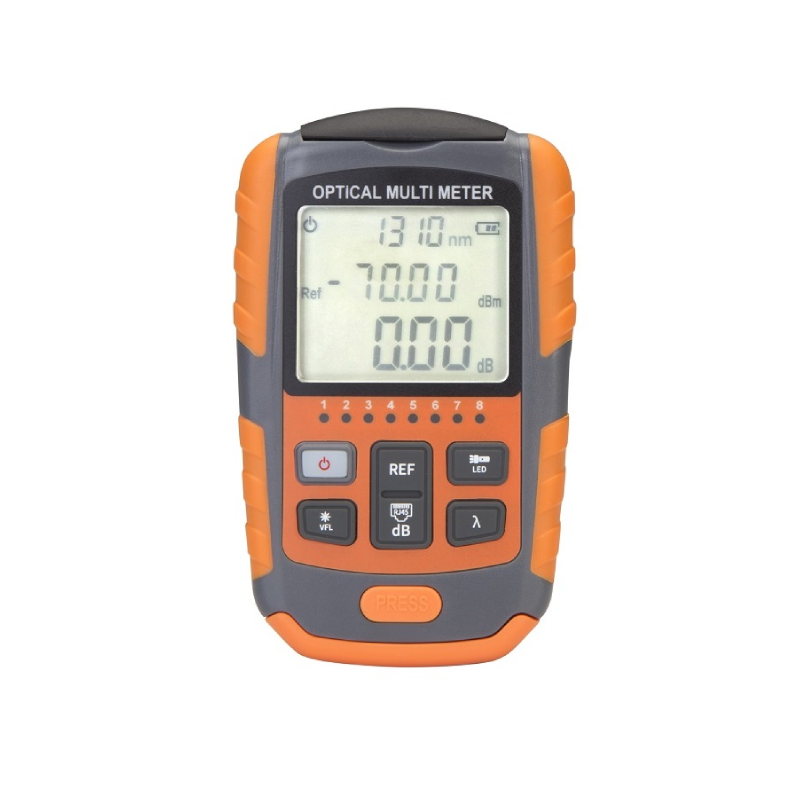

FOPM-C Fiber Optical Multi-Meter
10G EPON | X GPON | Downstream 1490nm | 1577nm | VFL Multi-function Tester
10 Working Wavelength 850/980/1270/1300/1310/1490/1550/1577/1625/1650
3S FOPM-C Fiber Optical Multi-Meter is a multi-function testing instrument by integrating fiber optical power meter (OPM) and visual fault locator (VFL).
Features:
1. Multi Tester / 10G EPON / X GPON / downstream 1490nm / 1577nm Testing
2. Built in Optical Power Meter
3. Built in Visual Fault Locator (2mW/15mW/30mW optional)
4. RJ45 Cable Sequence
5. RJ45 Cable Tracking (optional)
6. Flashlight
7. Type-C Charging Port
8. 10 Working Wavelength: 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm
Technical Specifications:
Part Number | FOPM-7006C | FOPM-5026C |
Optical Power Meter (OPM) | ||
Wavelength Range(nm) | 800-1700 | 800-1700 |
Fiber Connector | ||
Type of Detector | InGaAs | |
Measurement Range(dBm) | -70~+6 | -50~+26 |
Uncertainty | ±5% | |
Calibration Wavelength (nm) | 850/980/1270/1300/1310/1490/1550/1577/1625/1650 | |
Recognizable Frequency | 270Hz / 330Hz / 1KHz / 2KHz | |
Visual Fault Locator (VFL) | ||
Working Wavelength (nm) | 650±30 | |
Output Power (mW) | 2 / 15 / 30 | |
Mode | CW / 1Hz / 2Hz | |
Connector Port | 2.5mm universal connector (suitable for FC SC ST) | |
General Information | ||
Power Supply | Lithium Battery, 3.7V / 700mAh | |
Charging Port | Type C | |
Automatic Shutdown Time (min) | 10 | |
Operating Temperature (C) | -10~+50 | |
Storage Temperature (C) | -40~+70 | |
Relative Humidity | 0 ~ 95% No Condensing | |
Instrument size (mm) | 110 x 68 x 27 | |
Weight (g) | 130 |
