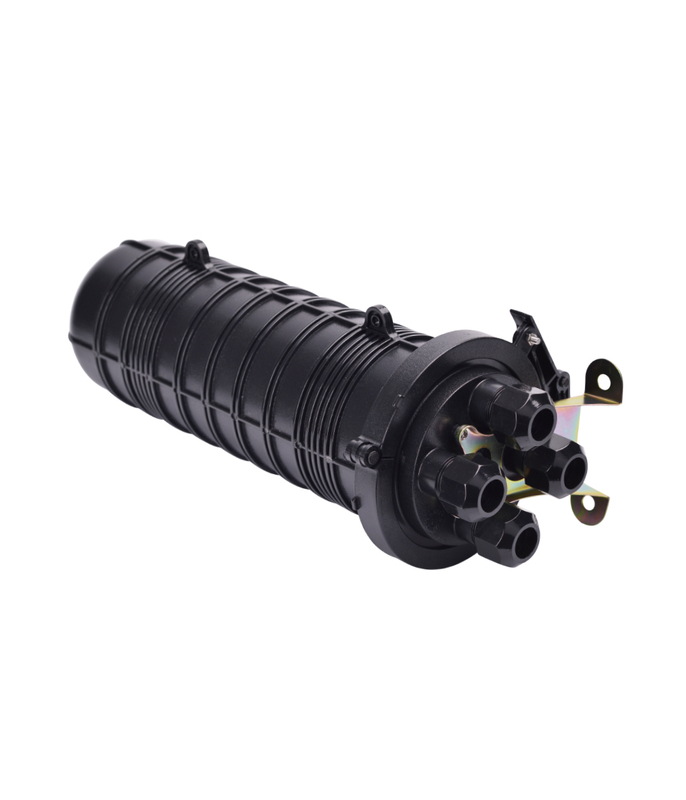

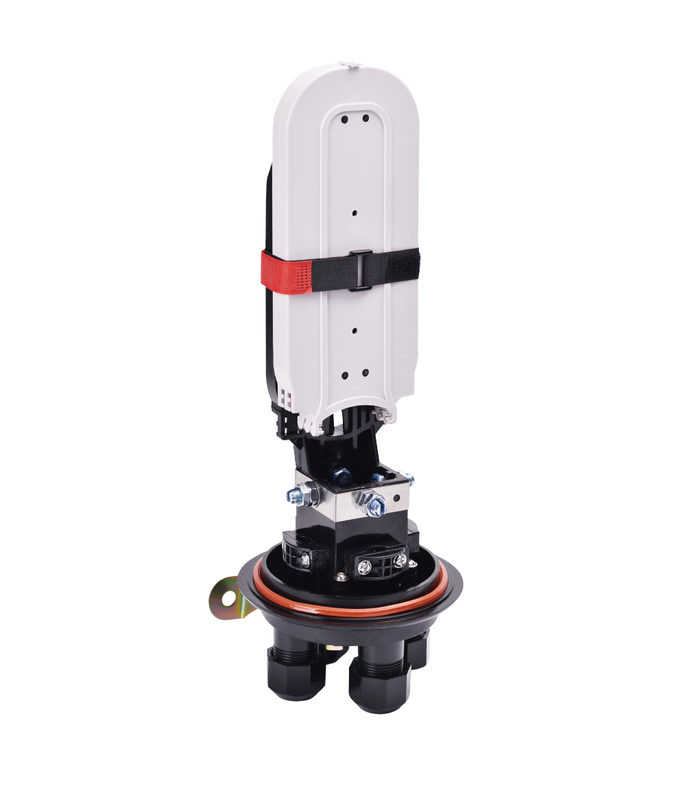

96 Cores Dome Type Mechanical Sealing Fiber Optic Splice Closure

Type

Dome type

Sealing Structure

Mechanical

Number of Inlet/Outlet ports

4 ports

Cable Diameter

4 ports×17mm

Maximum Capacity

Bunchy: 96 fibers;

Ribbon: 288 fibers

Capacity per Splice Tray

Bunchy: single layer:12 fibers; dual layers: 24 fibers;

Ribbon: 6pcs

Quantity of Splice Tray

4pcs

Body Material

PC

Sealing Material

Thermoplastic rubber

Assembling method

Aerial, direct buried, pipelined, wall mounting, manhole

Dimension

430(H)×190(D)mm

Net Weight

2.5~3.1KG

Temperature

-40℃~65℃

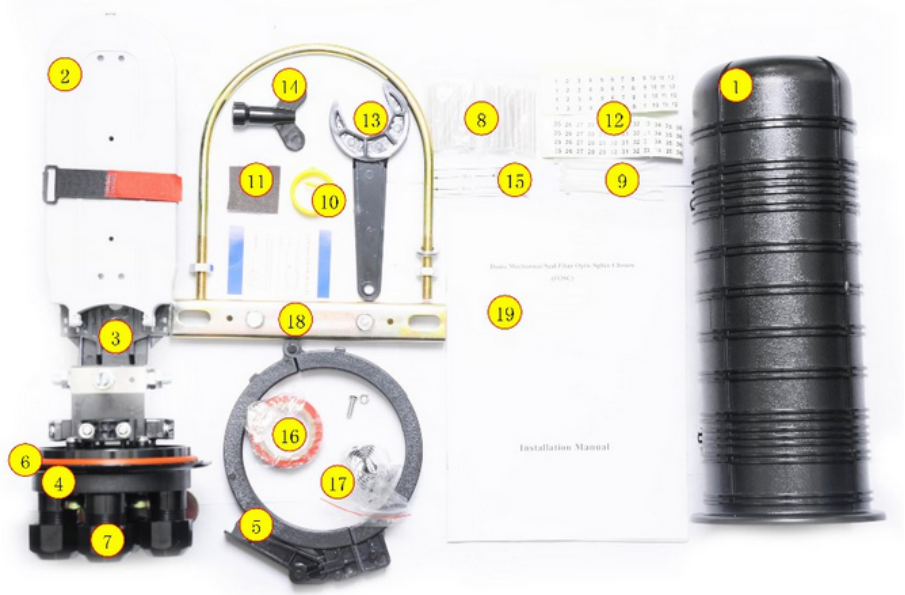

1

Housing (Cover)

To protect splices of fiber optic cables

1pc

2

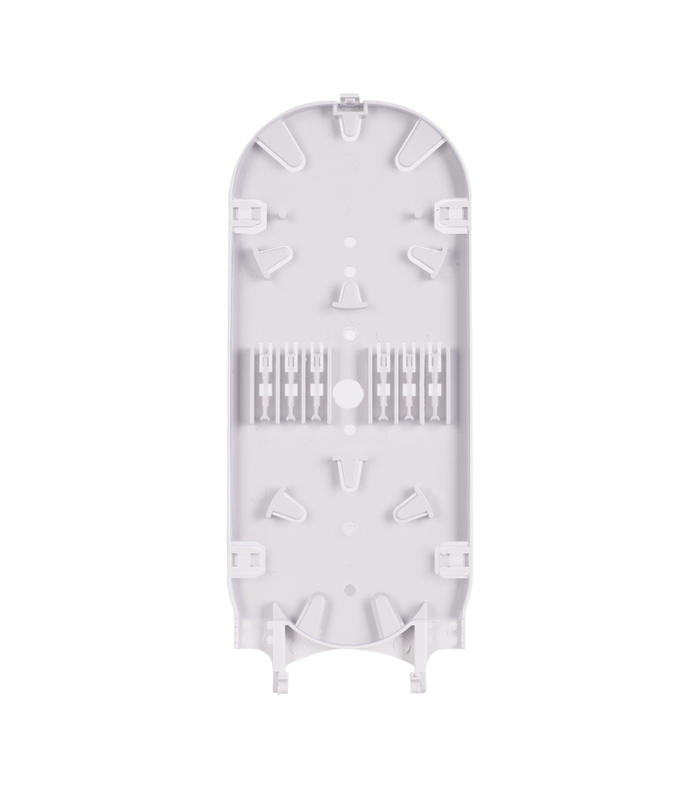

Splice Tray

To fix Fiber Splice Protective Sleeves

Max. 4pcs

3

Fiber Holding Tray

To store loose tube fibers

1pc

4

Housing (Base)

To fix internal and external structure

1pc

5

Plastic Hoop

To fix Housing Cover and Base

1pc

6

Sealing Grommet

To seal Cover and Base

1 set

7

Sealing Rings for Ports

To seal cable ports

4pcs

8

Fiber Splice Protective Sleeves

To protect fiber splices

Same as capacity

9

Nylon Tie

To fix buffer tubes with fibers inside

8pcs

10

Grounding Wire

To connect with grounding device

1pc

11

Abrasive Cloth

To polish fiber optic cable

1pc

12

Labelling Paper

To label fibers

1 set

13

Wrench

To tighten nuts of cable ports

1pc

14

M10 Wrench

To screw nuts for strength member

1pc

15

Measuring Paper

To measure perimeter of fiber cable

1pc

16

Sealing Tape

To enlarge cable diameter for sealing grommet

1 roll

17

Insulation Tape

To enlarge cable diameter for fixation

1 roll

18

Hanging Hoop

To install on wall and pole

1 set

19

User Manual

To instruct installation

1pc

1

Valve

To perform pressure and sealing testing

1pc

2

Grounding Device

To derive metallic components of fiber cable

1 set

3

Buffer Tube

To protect fibers and be fixed on splice trays

specified

4

Desiccant

To desiccate air in FOSC after sealing

1 bag

Name

FOSC: Fiber Optic Splice Closure

Shape and Sealing

BDM: Dome type mechanical sealing

Type

A

Cable Port

4=4 Ports

Fiber Optic Splice Tray

S12: 12-core

S24: 24-core

Number of Splice Trays

1: 1 tray

2: 2 trays

3: 3 trays

4: 4 trays

Valve

V: Valve included

Grounding Device

G: Grounding device included
