Fiber Optic Loopback
3STelecom
Description:

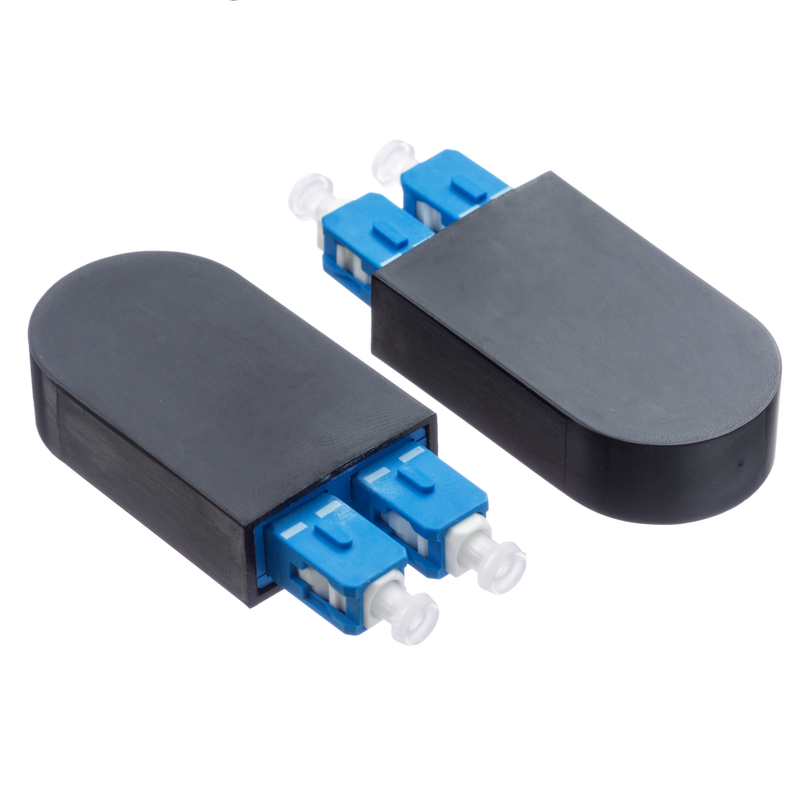

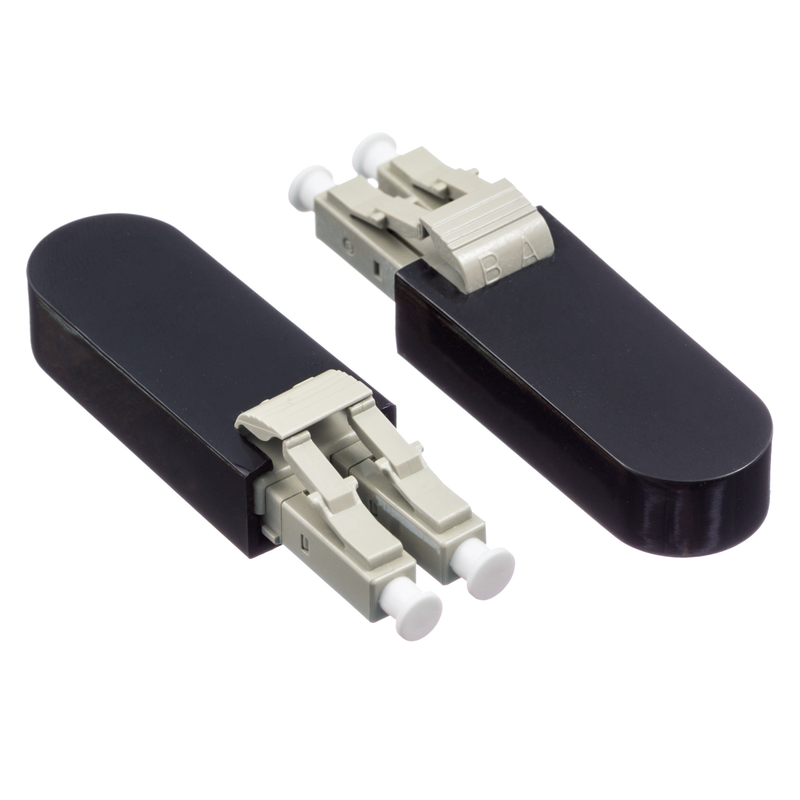

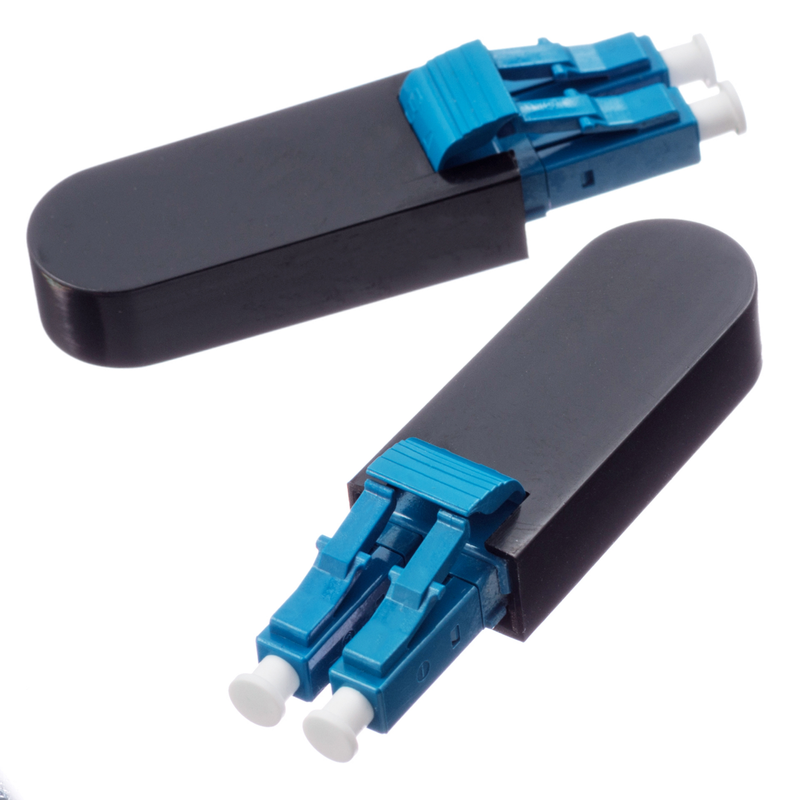

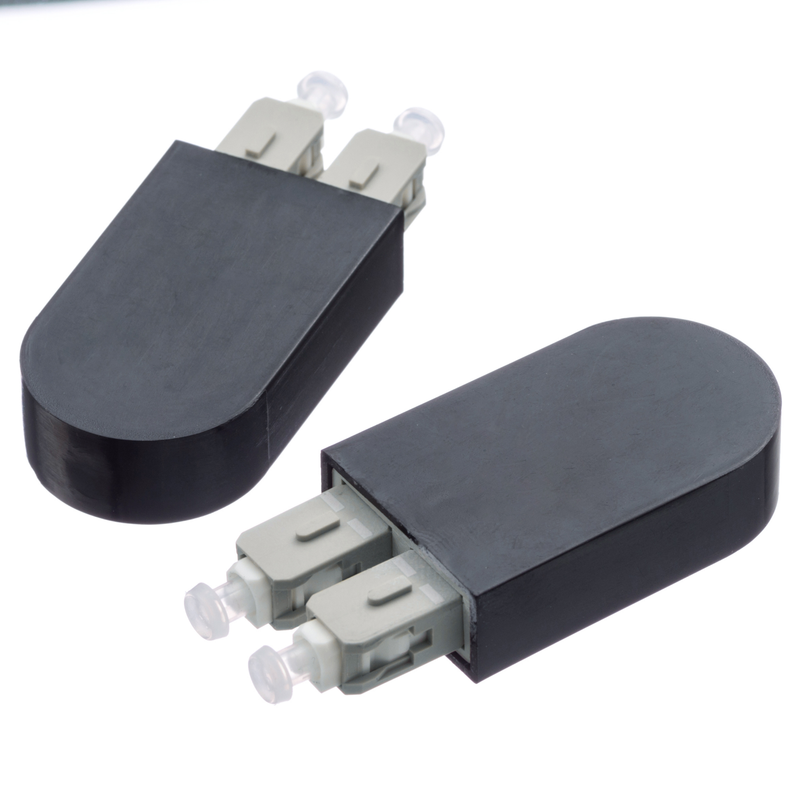

Fiber Optic Loopback provides a return signal for fiber optic equipment which can be using for testing purposes and isolating any network issues. Built using high quality Glass, these fiber optic loopback adapter cables will offer consistent performance time and time again. Available type including SC, MT-RJ, MU and LC. Bare fiber, 0.9mm cable, 2.0/3.0mm cable are all available.
Application:
1. R&D
2. Fiber labs
3. Telecom testing
4. FTTX testing
5. Patch panel applications
6. Equipment interconnection
Specifications:
Item | Parameter | |
Single mode | Multi-mode | |
Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
Insertion Loss | typical≤0.2dB, Max≤0.30dB | typical≤0.4dB, Max≤0.5dB |
Return Loss | UPC≥50dB, APC≥60dB | ≥35dB |
Repeatability | ≤0.1dB | |
Interchangeability | ≤0.2dB | |
Durability | ≤0.2dB typical change, 1000 mating | |
Operating Temperature | -20ºC to +70ºC | |
Storage Temperature | -40ºC to +85ºC |
