2km Bare Fiber Reel | 25km Bare Fiber Reel |
Description:

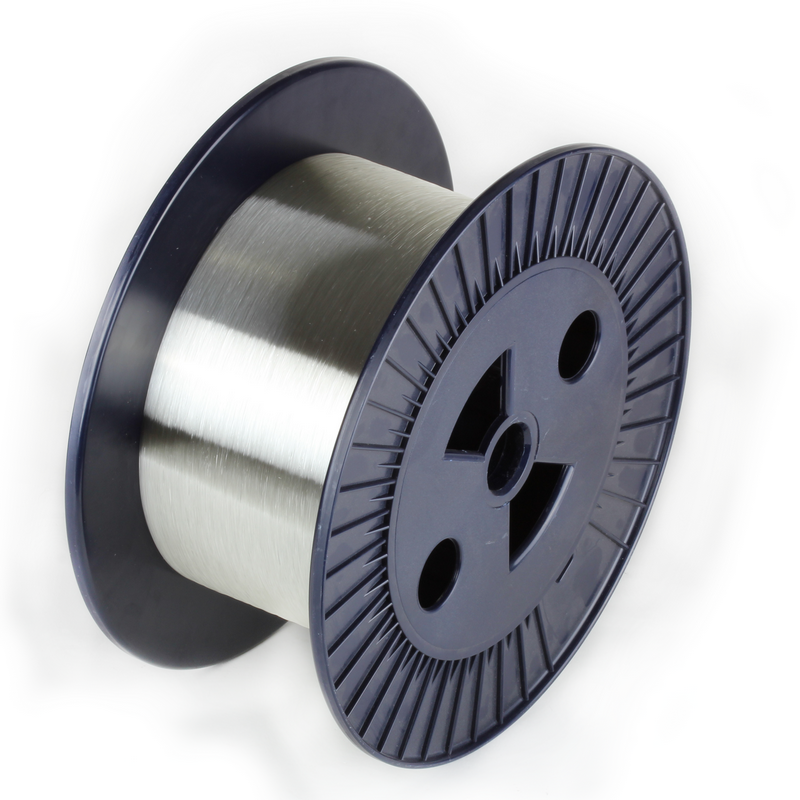

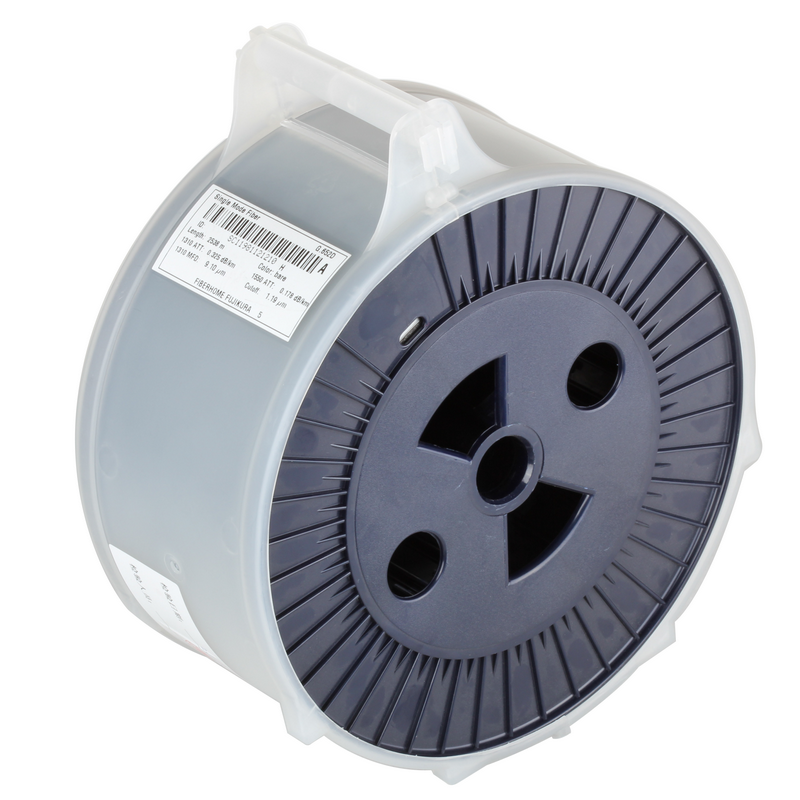

Bare fiber reel is used for testing projects. Both G.652 and G.657A type bare fiber are available. Bare fiber reel delivers a good macrobending performance in the industry while maintaining compatibility with current optical fibers, equipment, practices and procedures. This full-spectrum single-mode optical fiber reel experiences virtually no signal loss when subjected to smaller radii bends. It is your best assistant in testing project.
Features:
Full-spectrum single mode fiber
Small macrobending radius, comply with G.657A or G.652D standard
Small attenuation value
Suitable for any optical testing environment
Specification:
Physical parameters | |
Fiber Type | Single Mode |
Total Length | 2km/25km/Custom |
Diameter of coated fiber | 250um |
Diameter of bare fiber | 125um |
Min macrobending radius | 30mm(G.652D) / 15mm(G.657A) |
Typical attenuation value | |
1310nm working wavelength | 0.33~0.35dB/km |
1490nm working wavelength | 0.21~0.24dB/km |
1550nm working wavelength | 0.19~0.20dB/km |
1625nm working wavelength | 0.21~0.23dB/km |
2km Bare Fiber Reel | 25km Bare Fiber Reel |
Description:
Bare fiber reel is used for testing projects. Both G.652 and G.657A type bare fiber are available. Bare fiber reel delivers a good macrobending performance in the industry while maintaining compatibility with current optical fibers, equipment, practices and procedures. This full-spectrum single-mode optical fiber reel experiences virtually no signal loss when subjected to smaller radii bends. It is your best assistant in testing project.
Features:
Full-spectrum single mode fiber
Small macrobending radius, comply with G.657A or G.652D standard
Small attenuation value
Suitable for any optical testing environment
Specification:
Physical parameters | |
Fiber Type | Single Mode |
Total Length | 2km/25km/Custom |
Diameter of coated fiber | 250um |
Diameter of bare fiber | 125um |
Min macrobending radius | 30mm(G.652D) / 15mm(G.657A) |
Typical attenuation value | |
1310nm working wavelength | 0.33~0.35dB/km |
1490nm working wavelength | 0.21~0.24dB/km |
1550nm working wavelength | 0.19~0.20dB/km |
1625nm working wavelength | 0.21~0.23dB/km |
