Single Core Alignment China Fiber Optic Fusion Splicer

Dimension

130*154*132mm, weight: 1.95kg (battery included)

Fiber holder

Muti-function, suitable for bare fibers, drop cables, pigtails, etc.

Applicable fiber

SM(G.652), MM(G.655), DS(G.653), NZ DS(G.655), BI(G.657)

Alignment Method

Core to core

Diameter of fiber

Cladding:80-150μm, coating:100-1000μm

Fiber cleaved length

8-16mm

Splicing time

6s

Tube heating time

15s

Splicing program

Many(self-regulation)

Tube heating program

Many(self-regulation)

Protection sleeve length

60mm, 40mm

Storage of splice result

3000 results

Typical splice loss

SM:0.02dB, MM:0.01 dB, DS:0.04dB, NZ DS:0.04dB, BI:0.02dB

Return Loss

>60dB

Test of end-face

available

Loss evaluation

available

Operating condition

Altitude: 0-5000m, Humidity: 0-95%, Temperature: -20℃～+50℃;Wind speed: max 15m/s

Storage temperature

Humidity: 0-95%, temperature: -40-+80℃

Fiber view magnification

300X(X or Y view), 100X(X and Y view)

Terminals

Mini USB, Ethernet

Electrode life

5000 ARC discharges

Power supply

Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V; battery capacity:5200mAh

1

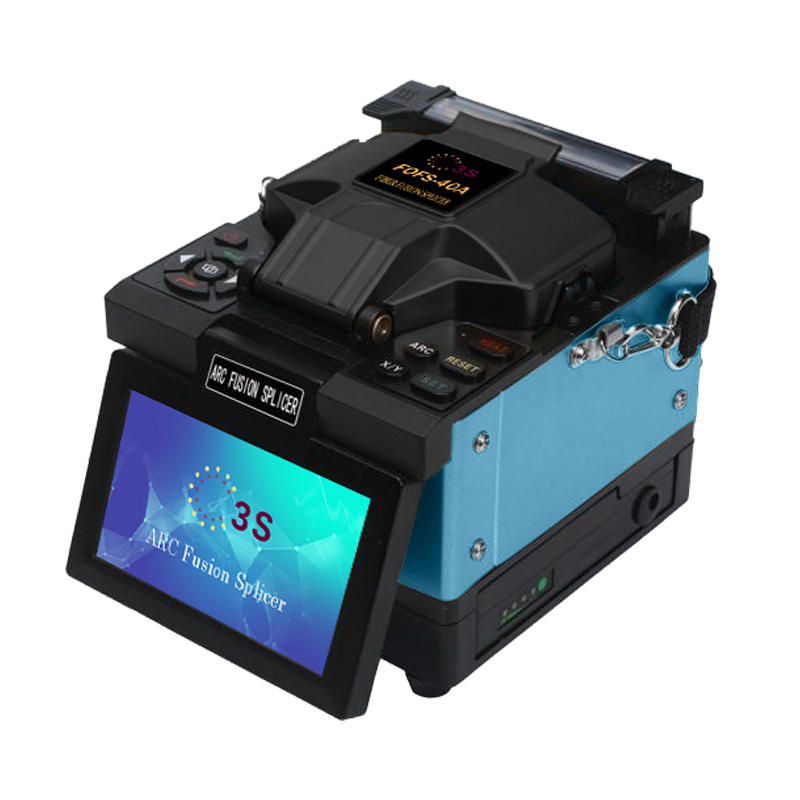

Fusion splicer

1

7

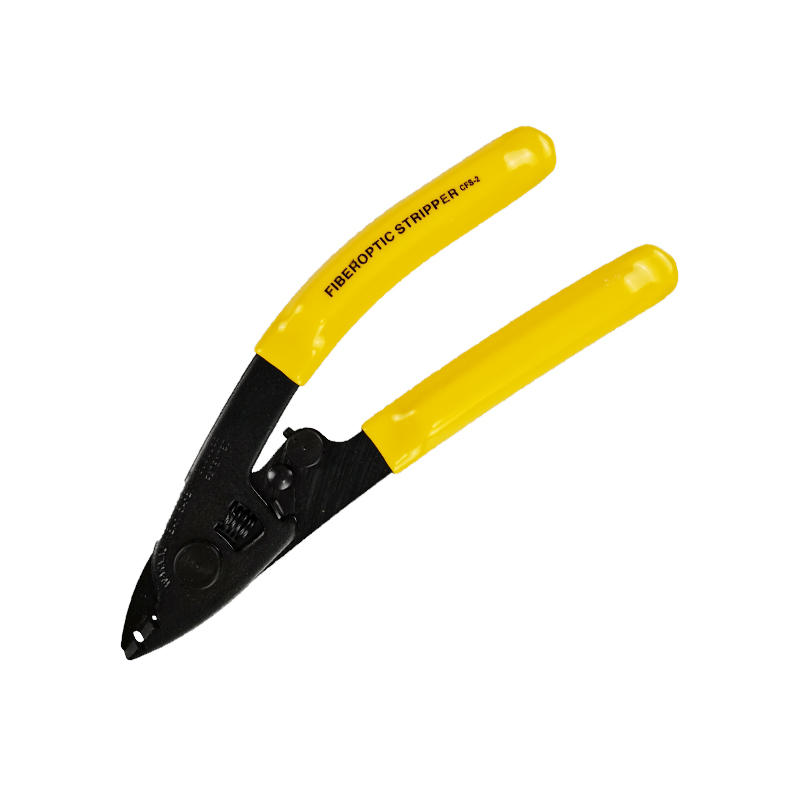

Fiber stripper

1

2

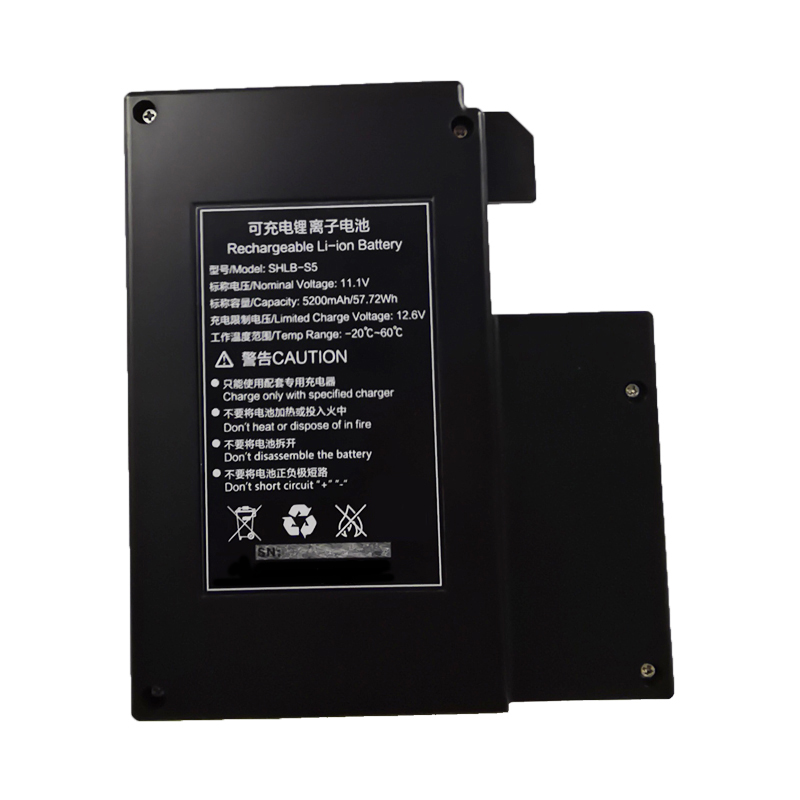

Battery

1

8

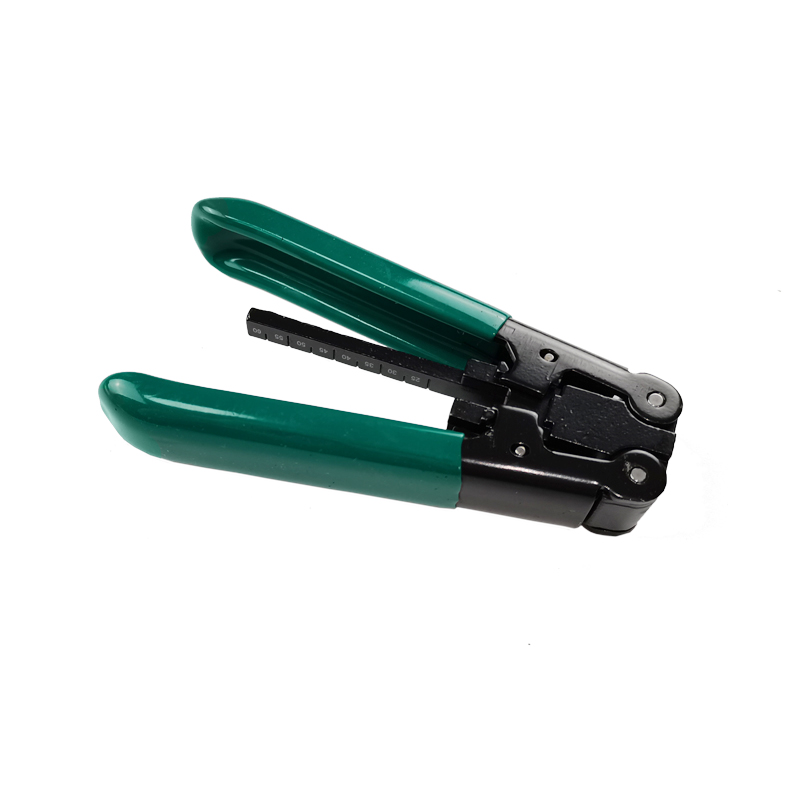

Drop cable stripper

1

3

Fiber cleaver

1

9

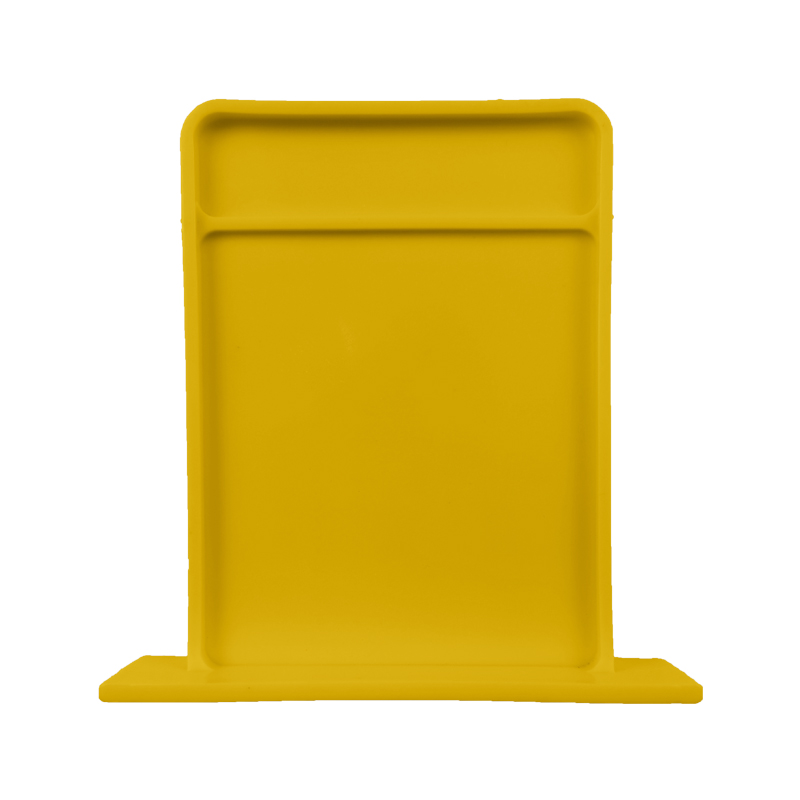

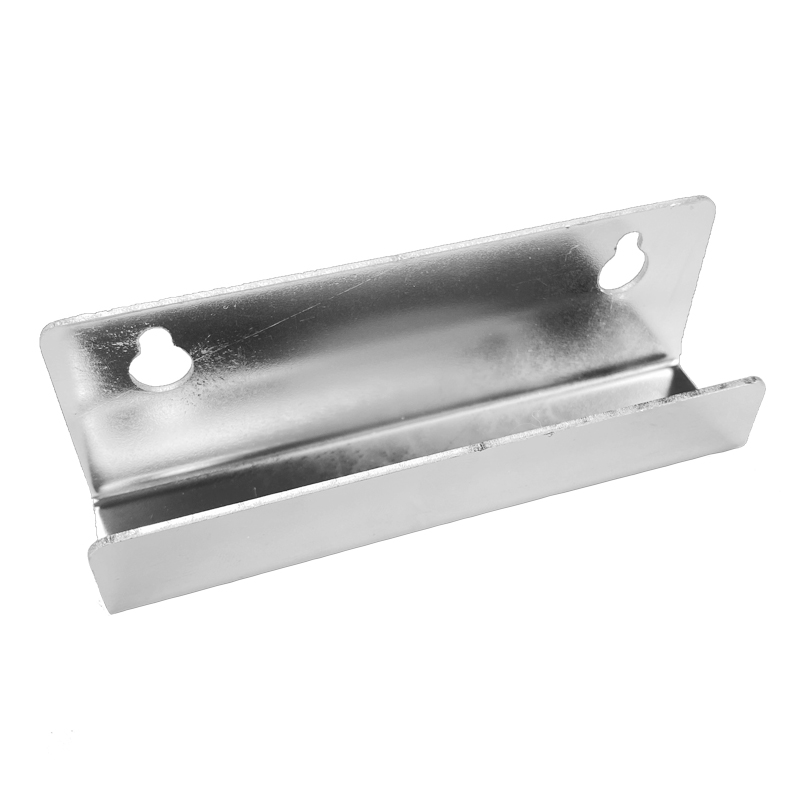

Cooling tray

1

4

Spare electrodes

1

10

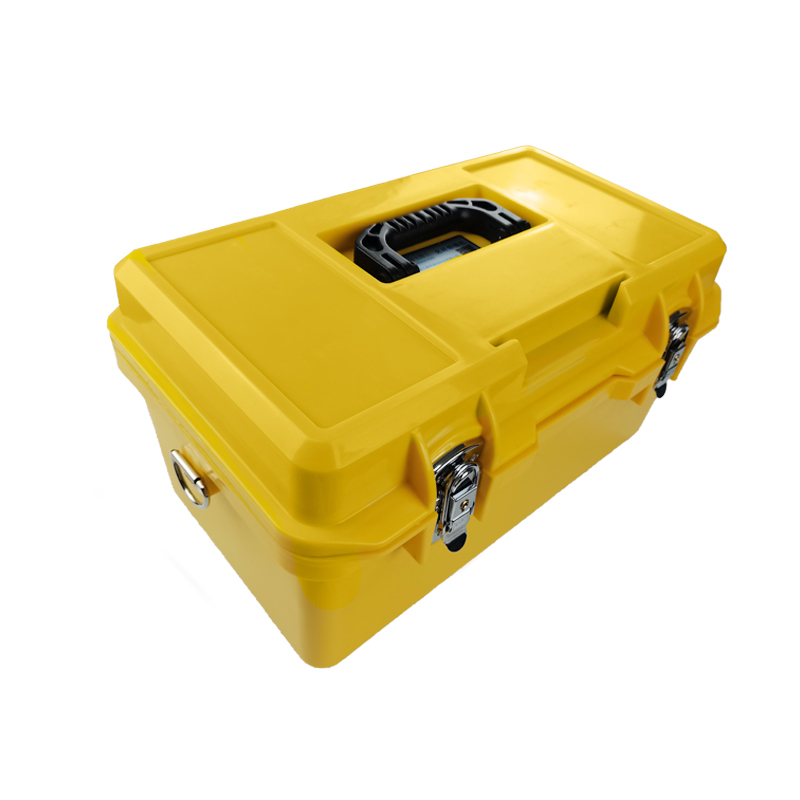

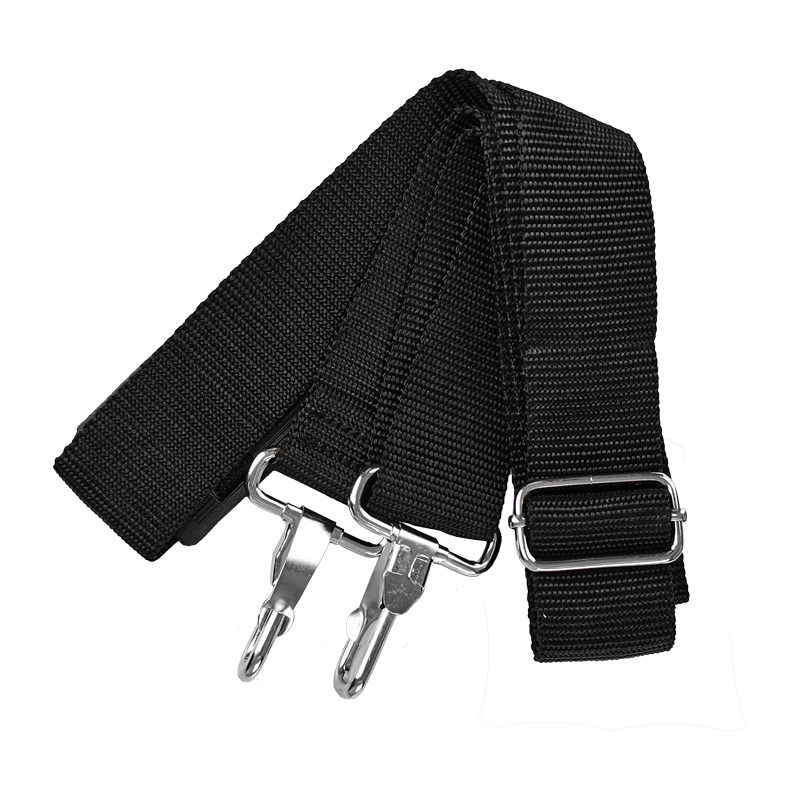

Carrying case

1

5

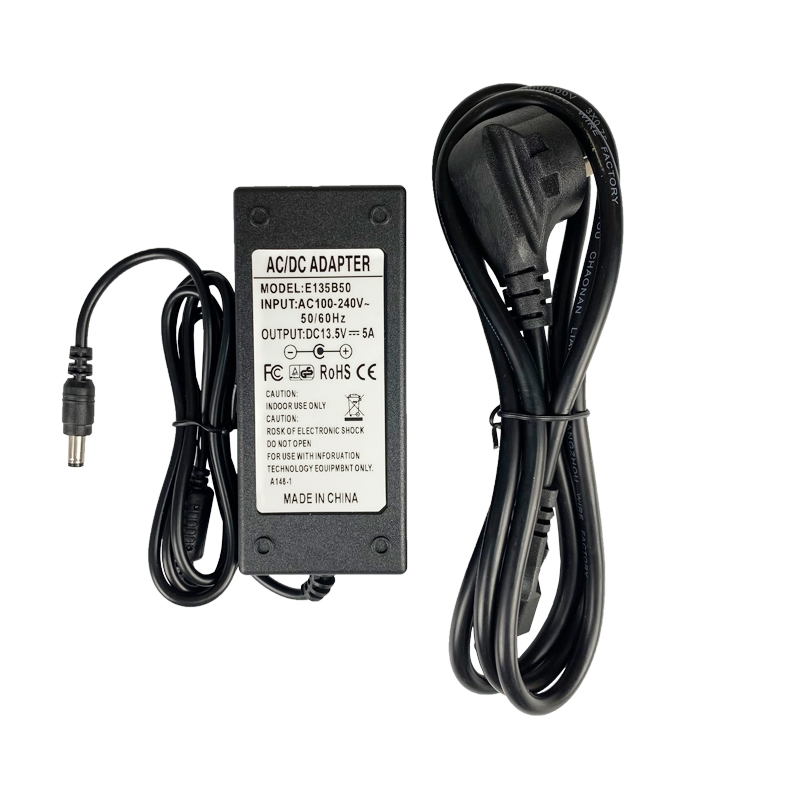

Power adapter & cord

1

11

Certificate of Approval

1

6

Manual
