LFC-B
3STelecom

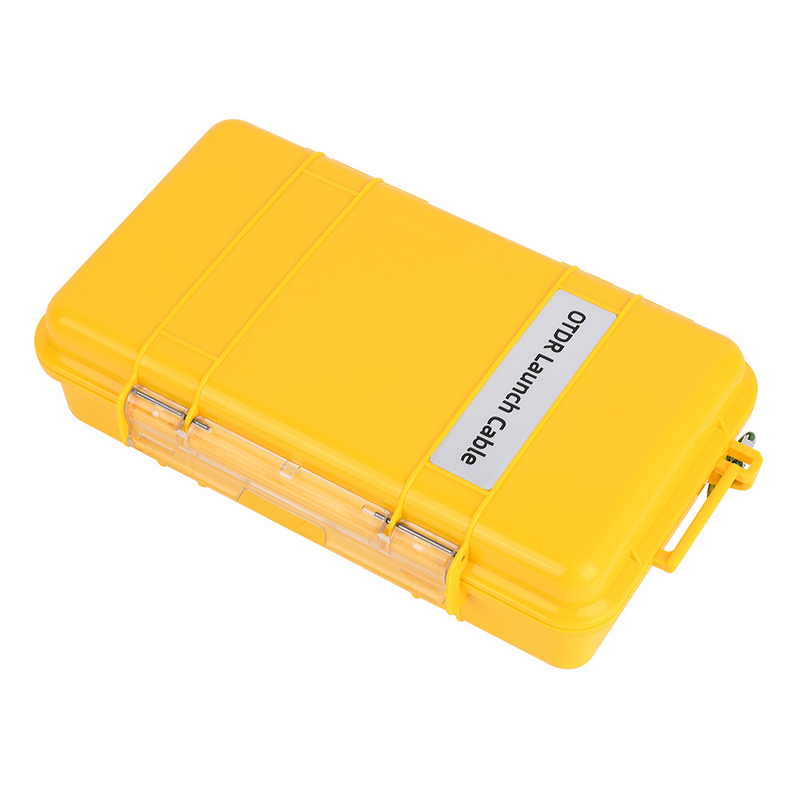

Fiber Optic Launch Lead 500M Case Size: 135(L) x 90(W) x 43(H) mm | Fiber Optic Launch Lead 1KM Case Size: 238(L) x 141(W) x 67(H) mm |
Description:

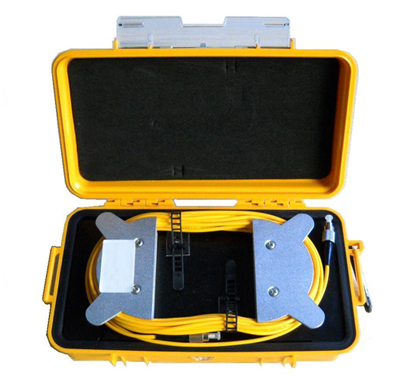

3S Telecom provides high performance Launch Fiber Cable (Launch Leads) with anti-corrosion box. SC/FC/LC connectors are selectable as well as the UPC and APC polishing mode. Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometer(OTDR) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in many different configurations and fiber lengths. Composed with high density anti-corrosion material outer box, highly enhance the environment suitability and durability. This product is definitely your good partner in Fiber Optic Testing Projects.
Features:
1. Compact and ruggedized, easy to carry
2. Excellent waterproof and dustproof performance
3. Auto Purge Valve for changes in altitude and temperature
4. Non-metal construction will not corrode or conduce electricity
Applications:
1. Training and calibration
2. Installation and testing by OTDR
Specifications:
Dimension | 1KM: 23.8(L) x 14.1(W) x 6.7(H)cm | 500M: 13.5(L) x 9(W) x 4.3(H)cm |
Fiber Type | G.657A/G.652D (MM can be customized) | |
Typical Loss | <0.5dB @ 1310nm for 1,000 meters | |
Connector Type | FC/SC/LC selectable | |
Polishing Type | APC/UPC selectable | |
Box Material | SR Polypropylene | |
Color | yellow | |
Weight | 0.75kg / 0.35kg (without fiber) | |
Operating Temperature | -40~+55°C |
Ordering Information:
Name | LFC=Launch Fiber Cable |
Connector 1 | SC=SC/UPC; AS=SC/APC; FC=FC/UPC; AF=FC/APC; LC=LC/UPC; AL=LC/APC; Customization ( please specify) |
Connector 2 | SC=SC/UPC; AS=SC/APC; FC=FC/UPC; AF=FC/APC; LC=LC/UPC; AL=LC/APC Customization ( please specify) |
Fiber Type | 7A1=SM G.657.A1; 2D=SM G.652.D; OM1=MM 62.5/125um; OM2=MM 50/125um Customization ( please specify) |
Cable Length | 500=500M; 1000=1km; 2000=2km Customization ( please specify) |
