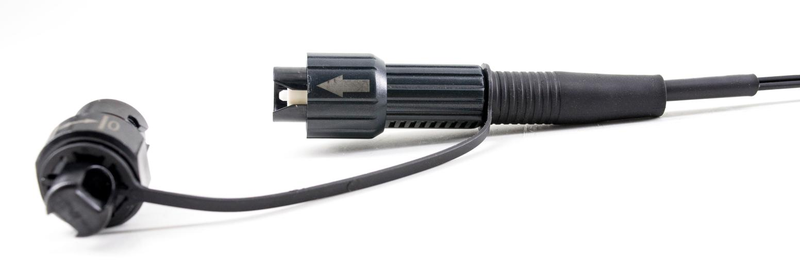

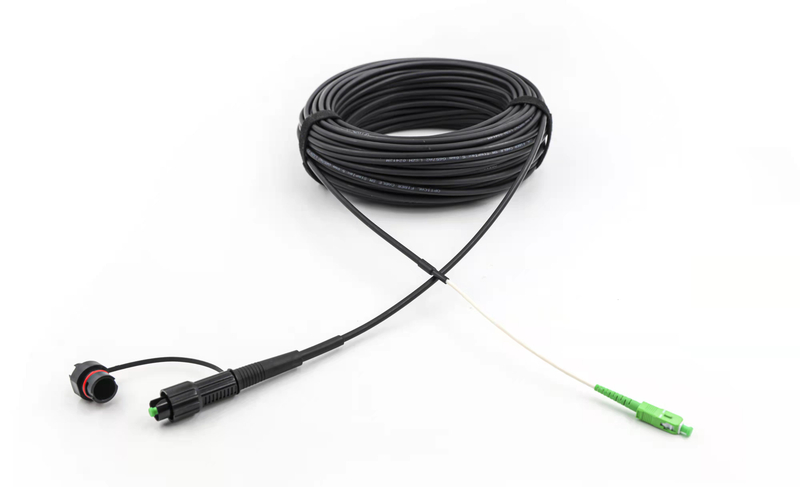

3S SC/APC Pre-connectorized Fiber Optical Drop Cable Assemblies is a fiber optical drop cable patch cord with one end pre-terminated connector SC/APC and another end terminated common fiber optical connector.
Features:
Cost effective solution for in house termination
Low insertion loss
Waterproof, dust proof and corrosion resistant with IP67 protection level
The material can be applied for all-weather and UV-resistant
Mechanical performance: IEC 61754-4 standard
Applied Cable diameter round drop cable 5.0mm and flat drop cable 4.0* 7.0mm
Applications:
Fiber optic communications in harsh outdoor environments
Outdoor communication equipment connection
Waterproof fiber equipment SC port
Remote wireless base station
FTTx Cabling project
3S SC/APC Pre-connectorized Fiber Optical Drop Cable Assemblies is a fiber optical drop cable patch cord with one end pre-terminated connector SC/APC and another end terminated common fiber optical connector.
Features:
Cost effective solution for in house termination
Low insertion loss
Waterproof, dust proof and corrosion resistant with IP67 protection level
The material can be applied for all-weather and UV-resistant
Mechanical performance: IEC 61754-4 standard
Applied Cable diameter round drop cable 5.0mm and flat drop cable 4.0* 7.0mm
Applications:
Fiber optic communications in harsh outdoor environments
Outdoor communication equipment connection
Waterproof fiber equipment SC port
Remote wireless base station
FTTx Cabling project

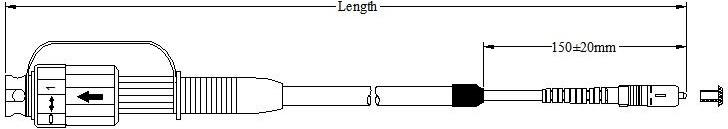

Dimension Diagram:

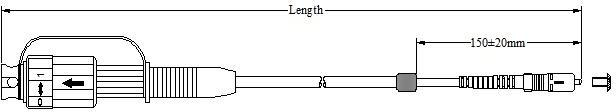

5.0mm Cable Assemblies -SC/APC
4.0 x 7.0mm Cable Assemblies -SC/APC
Patch cord versions:
Patch Cord Length Tolerance | |
Overall length (L) (M) | Length of tolerance(CM) |
0<L≤20 | +10/-0 |
20<L≤40 | +15/-0 |
L>40 | +0.5%L/-0 |

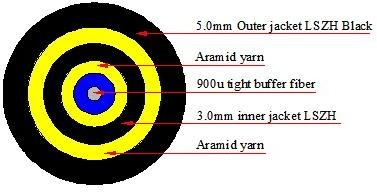

Cable Structure 5.0mm Cable:
Cable Parameters:
Cable Count | Out Sheath Diameter (MM) |
Weight (KG) | Minimum Allowable Tensile Strength (N) | Minimum Allowable Crush Load(N/100mm) | Minimum Bending Radius (MM) |
Storage Temperature (℃) | |||
Short Term | Long Term | Short Term | Long Term | Short Term | Long Term | ||||
1 | 5.0±0.2 | 26.5 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20 ~~ +60 |

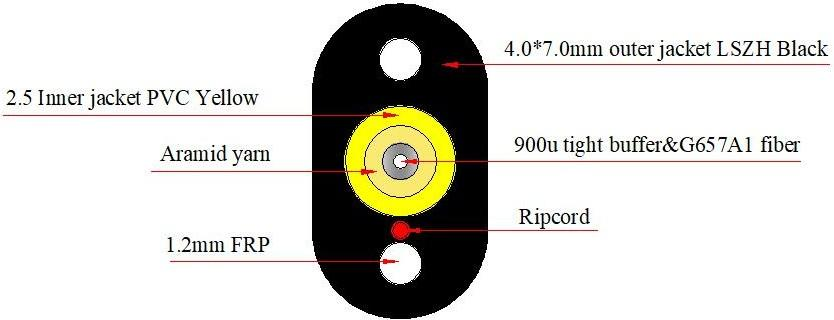

Cable Structure 4.0 x 7.0mm Cable:
Cable Parameters:
Cable Count |
Out Sheath Diameter (MM) |
Weight (KG) | Minimum Allowable Tensile Strength (N) | Minimum Allowable Crush Load(N/100mm) | Minimum Bending Radius (MM) |
Storage temperature (℃) | |||
Short Term | Long Term | Short Term | Long Term | Short Term | Long Term | ||||
1 | (4.0±0.2)x(7.0±0.2) | 42 | 1350 | 400 | 2200 | 1000 | 20D | 10D | -20 ~~ +60 |
Optical Characteristics:
Item | Parameter | Reference | |||
Singlemode | Multimode | ||||
Standard | P Grade | Standard | P Grade | ||
Insertion loss | Typical≤0.30dB Max≤0.75dB | Typical≤0.15dB Max≤0.35dB | Typical≤0.50dB Max≤0.25dB | Typical≤0.10dB Max≤0.35dB |
IEC 61300-3-34 |
Return loss | ≥ 50dB (PC) ≥ 60dB (APC) | ≥ 55dB (PC) ≥ 65dB (APC) | ≥30dB(PC) | ≥30dB(PC) | IEC 61300-3-6 |
End-Face Geometry:
Item | UPC (Ref: IEC 61755-3-1) | APC (Ref: IEC 61755-3-2) |
Radius of curvature (mm) | 10 to 25 | 5 to 12 |
Fiber height (nm) | -100 to 100 | -100 to 100 |
Apex offset (μm) | 0 to 50 | 0 to 50 |
APC angle (°) | / | 8° ±0.2° |
Key error (°) | / | 0.2° max |
End-Face Quality (SM):
Zone | Range (μm) | Scratches | Defects | Reference |
A: Core | 0 to 25 | None | None |
IEC 61300-3-35:2015 |
B: Cladding | 25 to 115 | None | None | |
C: Adhesive | 115 to 135 | None | None | |
D: Contact | 135 to 250 | None | None | |
E: Rest of ferrule | None | None |
End-Face Quality (MM):
Zone | Range (μm) | Scratches | Defects | Reference |
A: Core | 0 to 65 | None | None |
IEC 61300-3-35:2015 |
B: Cladding | 65 to 115 | None | None | |
C: Adhesive | 115 to 135 | None | None | |
D: Contact | 135 to 250 | None | None | |
E: Rest of ferrule | None | None |
Mechanical Characteristics:
Test | Conditions | Reference |
Endurance | 500 matings | IEC 61300-2-2 |
Vibration | Frequency: 10 to 55Hz, Amplitude: 0.75mm | IEC 61300-2-1 |
Cable retention | 100N (main cable); 50N (connector part) | IEC 61300-2-4 |
Strength of coupling mechanism | 80N for 2 to 3mm cable | IEC 61300-2-6 |
Cable torsion | 15N for 2 to 3mm cable | IEC 61300-2-5 |
Fall | 10 drops, 1m drop height | IEC 61300-2-12 |
Static lateral load | 1N for 1h (main cable); 0.2N for 5min (ranch part) | IEC 61300-2-42 |
Cold | -25°C, 96h duration | IEC 61300-2-17 |
Dry heat | +70°C, 96h duration | IEC 61300-2-18 |
Change of temperature | -25°C to +70°C, 12 cycles | IEC 61300-2-22 |
Humidity | +40°C at 93%, 96h duration | IEC 61300-2-19 |
