OFI-C Optical Fiber Identifier Product Details View  | | | |

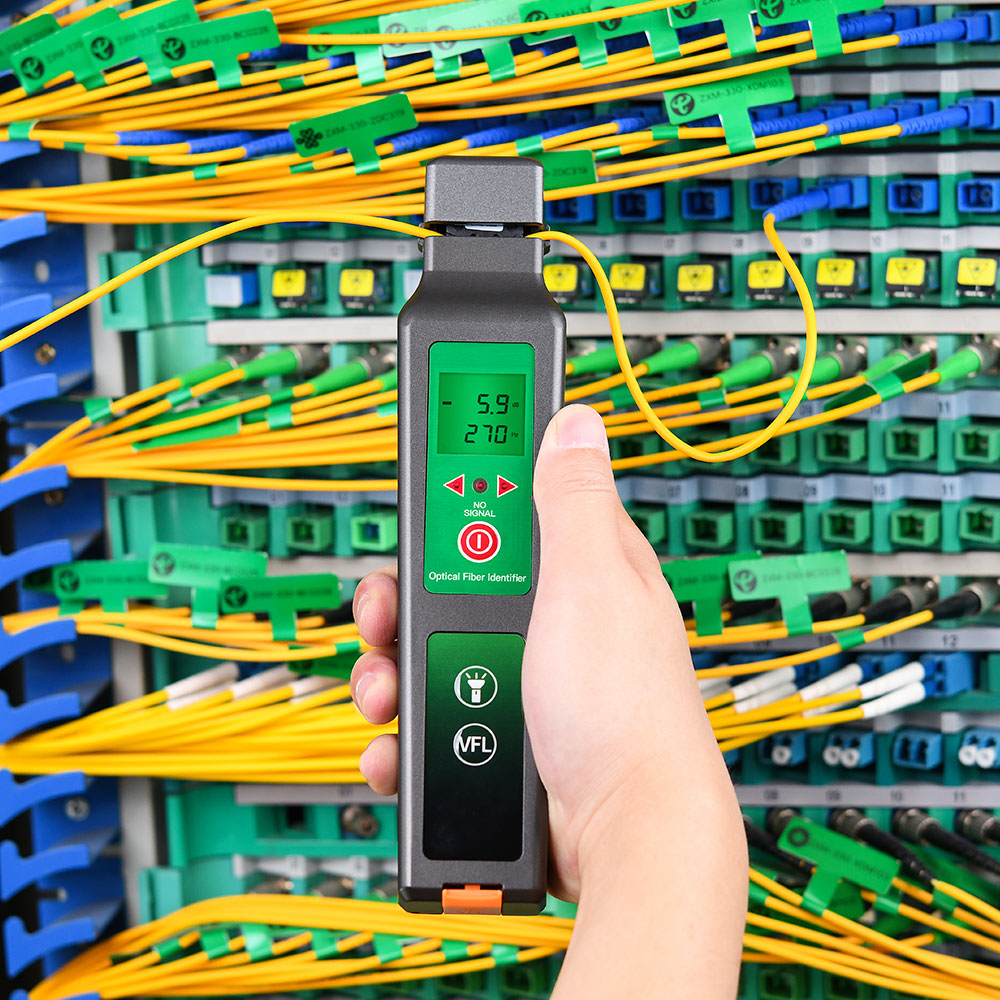

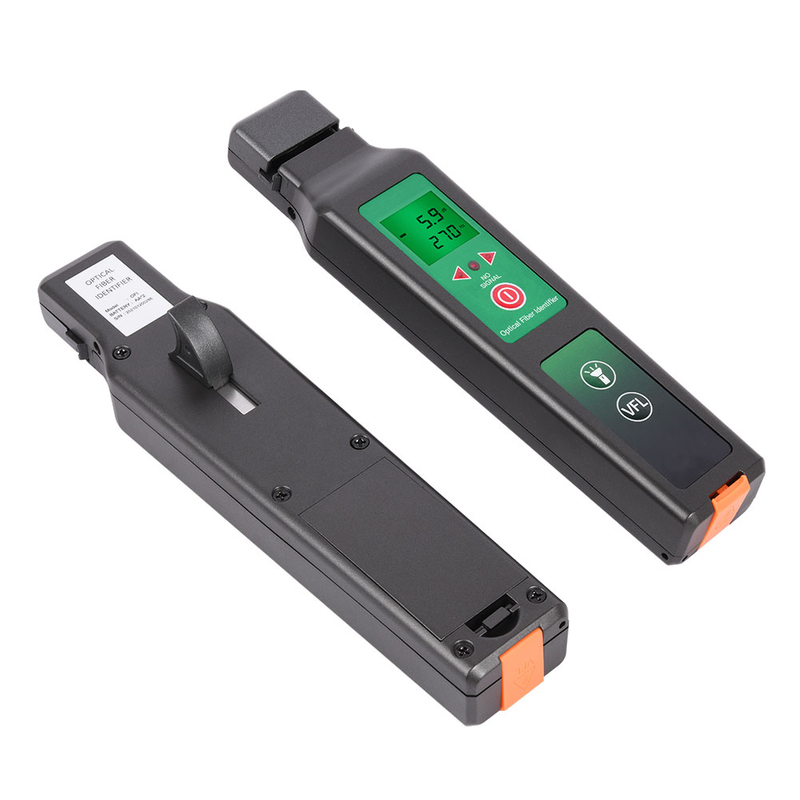

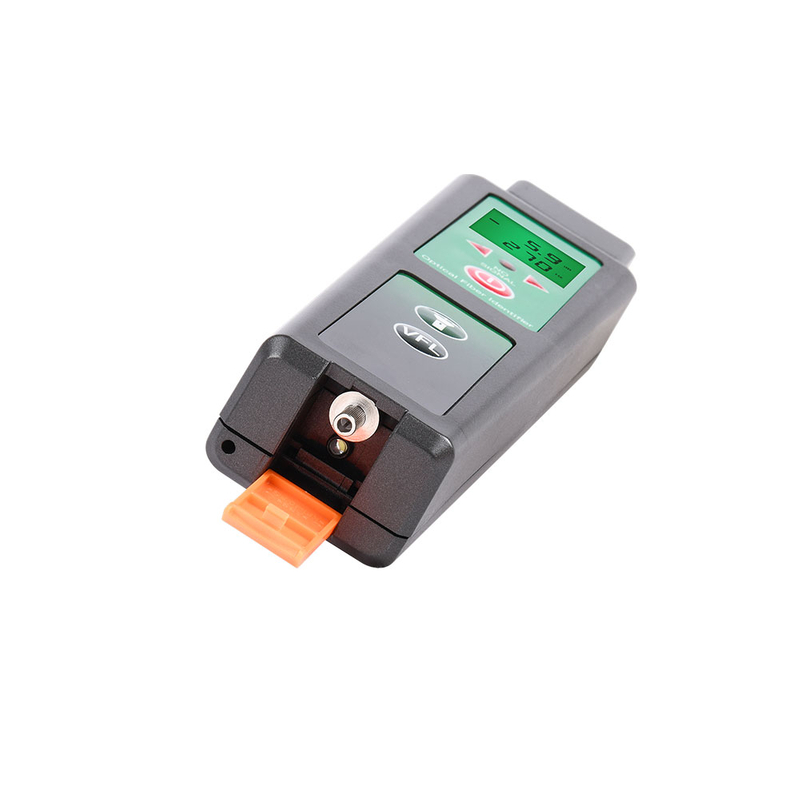

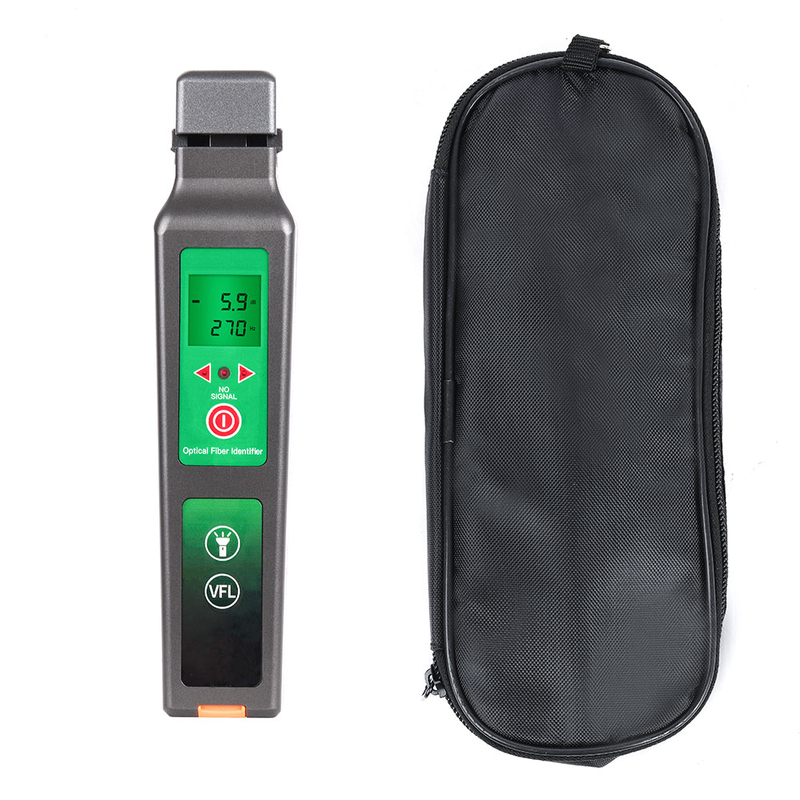

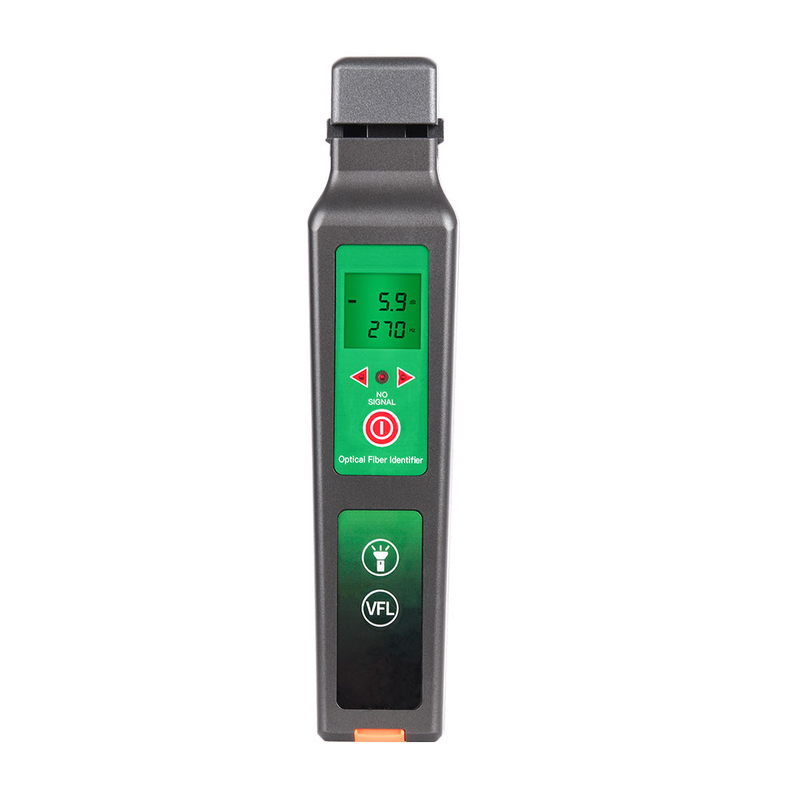

| OFI-C Front & Back View | OFI-C VFL Port View | OFI-C Carry Bag | OFI-C Working Application |
Features:
● Suitable for 0.25/0.9/2.0/3.0mm fibers
● LED backlight display, suitable for various environments without auxiliary lighting
● Test sensitivity: -40dBm to 10 dBm
● Multiple fiber adapter head, suitable for 0.25mm bare fiber, 0.9mm, 2.0mm and 3.0mm fiber, no need to replace the clam adapter
● Built in VFL function, 2.5mm universal connector, suitable for FC, SC and ST
● Be equipped with LED light, more convenient to check the fibers in the dark
● Test distance up to 10km, high stability
● Strong light source, strong penetrating power
Specification:
Wavelength Recognition Range | 800nm to 1700nm |
Signal Recognition Type | CW,270 Hz ± 5%,1 kHz ± 5%,2 kHz ± 5% |
Detector Type | φ1mm InGaAs 2 pcs |
Adapted fiber type | Universal Holder for φ0.25(Bare Fiber),φ0.9,φ2.0,φ3.0 Cable |
Signal Direction | Left & Right LED |
Optical Power Reading Range | -40 dBm to 10 dBm |
Signal Frequency Range | 270Hz,1kHz,2kHz |
Power Type | AA*2 |
Operating Temperature Range | -10℃ to 60℃ |
Storage Temperature Range | -25℃ to 70℃ |
Dimension | 219 x 45 x 28mm |
Weight | 235g |
VFL Function |
Power range | 10mW |
Testing distance | 8-10km |
Wavelength | 650nm |
Laser type | LD |
LED light | Support |
